PLAIN WEBBED ANGLE PLATES
PROUDLY MADE IN OUR FACILITY IN THE U.S.A.
Made in the USA
ASK OUR COMPETITION IF THEY CAN SAY THE SAME.


PAW-060606 Plain Webbed Angle Plate
PAW-060606

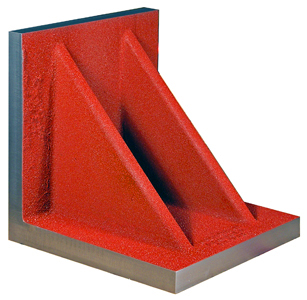

 PAW-121212 Plain Webbed Angle Plate
PAW-121212

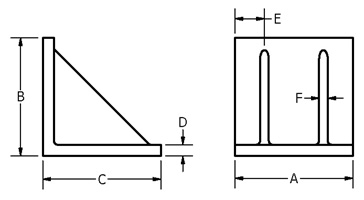

PAW Type Plain Webbed Angle Plate Drawing
  • Made from class 35-40 cast iron.

  • All ends machined square and parallel within 0.002" per 6".

  • Extra thick ribbed construction.

  • Ground finish - square within 0.0005" per 6" on the two working faces only.

  • Machined finish - square and parallel within 0.002" per 6".
MODEL # FINISH A B C D E F # OF
WEBS		 WT(#) PRICE
(US$)
PAW-020202 MILLED 2" 2" 2" 1/2" 1" 7/16" 1 1
$ 76
PAW-020202-G GROUND 2" 2" 2" 1/2" 1" 7/16" 1 1
$ 117
PAW-030303 MILLED 3" 3" 3" 1/2" 1-1/2" 7/16" 1 3
$ 80
PAW-030303-G GROUND 3" 3" 3" 1/2" 1-1/2" 7/16" 1 3
$ 130
PAW-040404 MILLED 4" 4" 4" 5/8" 2" 1/2" 1 7
$ 113
PAW-040404-G GROUND 4" 4" 4" 5/8" 2" 1/2" 1 7
$ 176
PAW-050505 MILLED 5" 5" 5" 11/16" 2-1/2" 9/16" 1 11
$ 150
PAW-050505-G GROUND 5" 5" 5" 11/16" 2-1/2" 9/16" 1 11
$ 277
PAW-060606 MILLED 6" 6" 6" 3/4" 3" 5/8" 1 18
$ 205
PAW-060606-G GROUND 6" 6" 6" 3/4" 3" 5/8" 1 18
$ 410
PAW-060810 MILLED 10" 6" 8" 1" 2-1/2" 3/4" 2 50
$ 402
PAW-060810-G GROUND 10" 6" 8" 1" 2-1/2" 3/4" 2 50
$ 660
PAW-080808 MILLED 8" 8" 8" 7/8" 2" 11/16" 2 42
$ 359
PAW-080808-G GROUND 8" 8" 8" 7/8" 2" 11/16" 2 42
$ 617
PAW-081006 MILLED 6" 10" 8" 1-1/4" 3" 3/4" 1 45
$ 372
PAW-081006-G GROUND 6" 10" 8" 1-1/4" 3" 3/4" 1 45
$ 629
PAW-101010 MILLED 10" 10" 10" 1" 2-1/2" 3/4" 2 70
$ 787
PAW-101010-G GROUND 10" 10" 10" 1" 2-1/2" 3/4" 2 70
$ 1,213
PAW-121212 MILLED 12" 11-3/4" 11-3/4" 1-1/8" 3" 7/8" 2 125
$ 835  T
PAW-121212-G GROUND 12" 11-3/4" 11-3/4" 1-1/8" 3" 7/8" 2 125
$ 1,728  T
PAW-121616 MILLED 16" 16" 12" 1-1/2" 4" 3/4" 2 265
$ 3,495  T
PAW-121616-G GROUND 16" 16" 12" 1-1/2" 4" 3/4" 2 265
$ 4,520  T
PAW-122424 MILLED 24" 24" 12" 2-3/8" 6" 1" 2 410 CALL FOR PRICE
 T
PAW-122424-G GROUND 24" 24" 12" 2-3/8" 6" 1" 2 410 CALL FOR PRICE
 T
PAW-181818 MILLED 18" 18" 18" 1-1/4" 6" 1" 2 345 CALL FOR PRICE
 T
PAW-181818-G GROUND 18" 18" 18" 1-1/4" 6" 1" 2 345 CALL FOR PRICE
 T
PAW-242424 MILLED 24" 24" 24" 2" 4" 1" 2 870 CALL FOR PRICE
 T
PAW-242424-G GROUND 24" 24" 24" 2" 4" 1" 2 870 CALL FOR PRICE
 T
PRODUCT CERTIFICATIONS
Long Form Certification
  • A form showing the advertised sizes and/or tolerances.

  • The actual measurements taken of those sizes and/or tolerances.

  • A statement that the standards used to measure the tool are traceable to the National Institute of Standards and Technology.
Short Form Certification
  • A form certifying that the specified product met manufacturer's specifications before leaving our factory.
MODEL # DESCRIPTION WT(#) PRICE
(US$)
CERT-LONG Certification - Long 0
$ 131
CERT-SHORT Certification - Short 0
0

Cast Iron Angle Plate Comparison - Suburban Tool vs Value Line
